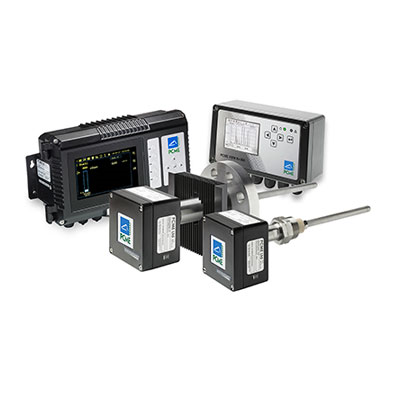

ELECTRODYNAMIC DUST MONITOR VIEW 820
Certified Multi-sensor dust monitor – category 1 under ATEX / IECEx – for indicative emissions trending and measurement in hazardous zone and in dry processess with elevated pressures.
Advanced Probe Electrification featuring long term data logging for process trend analysis and reporting.
FEATURES & BENEFITS
- Reliable measurement of leaking and broken bags in dust collectors
- Sensor configured remotly via controller
- Automatic sensor drift checks (zero and span)
- Automatic probe check (Insulator Short-Circuit Check) for improved data integrity
- Reduces filter maintenance intervals, process down-time and filter costs
MAIN APPLICATIONS
- Stacks after bag filters, cartridge filters, cyclones
- Variable velocities within range 4-30m/s (typical bagfilter velocity ranges), constant velocity required outside this range
- High Pressure applications
- Explosive atmosphere zones 0, 1, 2, 20, 21 and 22
Typical Applications:
- Minerals (eg Coal Gasification)
- Petrochemicals (eg Plastics manufacture)
- Power (eg Biomas)
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS |
Measured parameters |
Dust |
Technology |
ElectroDynamic® Advanced Probe Electrification |
Measurement/Monitoring capability |
0-500 mg/m³* |
Stack/Duct diameter suitability |
up to 6m |
Flue gas temperature |
up to 450°C |
Baghouse |
YES |
Cartridge Filter |
YES |
Ceramic Filter |
YES |
Coalescent Filter |
/ |
Cyclone |
YES |
Electrostatic Precipitator (ESP) |
/ |
Wet Electrostatic Precipitator (WESP) |
/ |
Wet Scrubber |
/ |
Sensor variants |
Stainless Steel |
QA checks |
N/A |
*Application dependant
TECHNICAL DATA
TECHNICAL DATA |
Monitoring capability |
0-500 mg/m3 |
Sensor Variants |
316 Stainless Steel (standard) |
Stack Temperature Ranges |
0-400°C (450°C option) |
Pressure Rating |
< 50Bar (0-400°C) <38 Bar (0-450°C) |
On-board data logging |
User configurable Long term, Short term or Pulse logging |
Outputs |
RS232, RS485 (Modbus), Ethernet Digital Alarm and 4/20mA (number of outputs dependant on controller type) |
APPROVALS & CERTIFICATIONS
- Ex Zone 0, 1, 2
- US EPA MACT Compliant BLD
