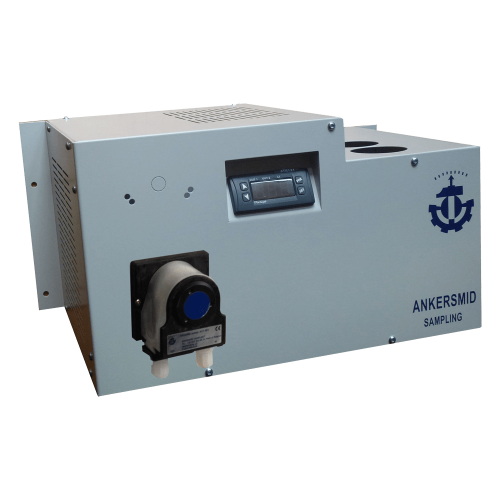

Version ACC 1xx Series
The compressor cooler series ACC 1xx offers precision, safety and long-term stability for extractive analytics. The very low gas dissolution rate is attained owing to the new cooler technology (Patents applied). Both the permanent separation of the condensate from the gas phase, and the shorter contact time of the gas in the system, plays important roles in reducing gas dissolution rates.
Additional information
The new cooler incorporates an advanced structural design with housing suitable for both wall-mounting (standard) and 19“-racks by using optional brackets. The coolers can be integrated into the analysis cabinet without empty space requirements at the side for a cooling air outlet.
The design enables 1 or 2 heat exchangers to be incorporated either at the factory or at a later time, without any problem. The exchangers can be connected in series or parallel following customer requirements.
Due to the modular design with pre-lasered cut-outs it is easy to add a 2nd heat exchanger and condensate pump even after the cooler is already installed.
An electronic system monitors the dew point and controls the integrated fan.
A temperature alarm output is wired to the terminal block incorporated of the cooler housing for a safe connection without disassembling the cooler.
Available for 230VAC and 115VAC power supply.
Application
Ankersmid Compressor Coolers are used to lower the dew point of humid gas to avoid condensate entering into the gas analyser. This unique micro-processor controlled compressor cooler has been designed with a powerful dew point stabiliser. The dew point is set at 4°C but can be changed at any value between 1 and 15°C.
A good and stable gas dew point avoids cross-interference if the analyser is sensitive to H2O.
The ACC cooler is designed especially for:
– Power Plants
– Waste Incinerators
– Cement Manufacturing
– Chemical Production Plants
– Gas Production Plants
– Glass manufacturing
– Timber Processing
– Food Processing
